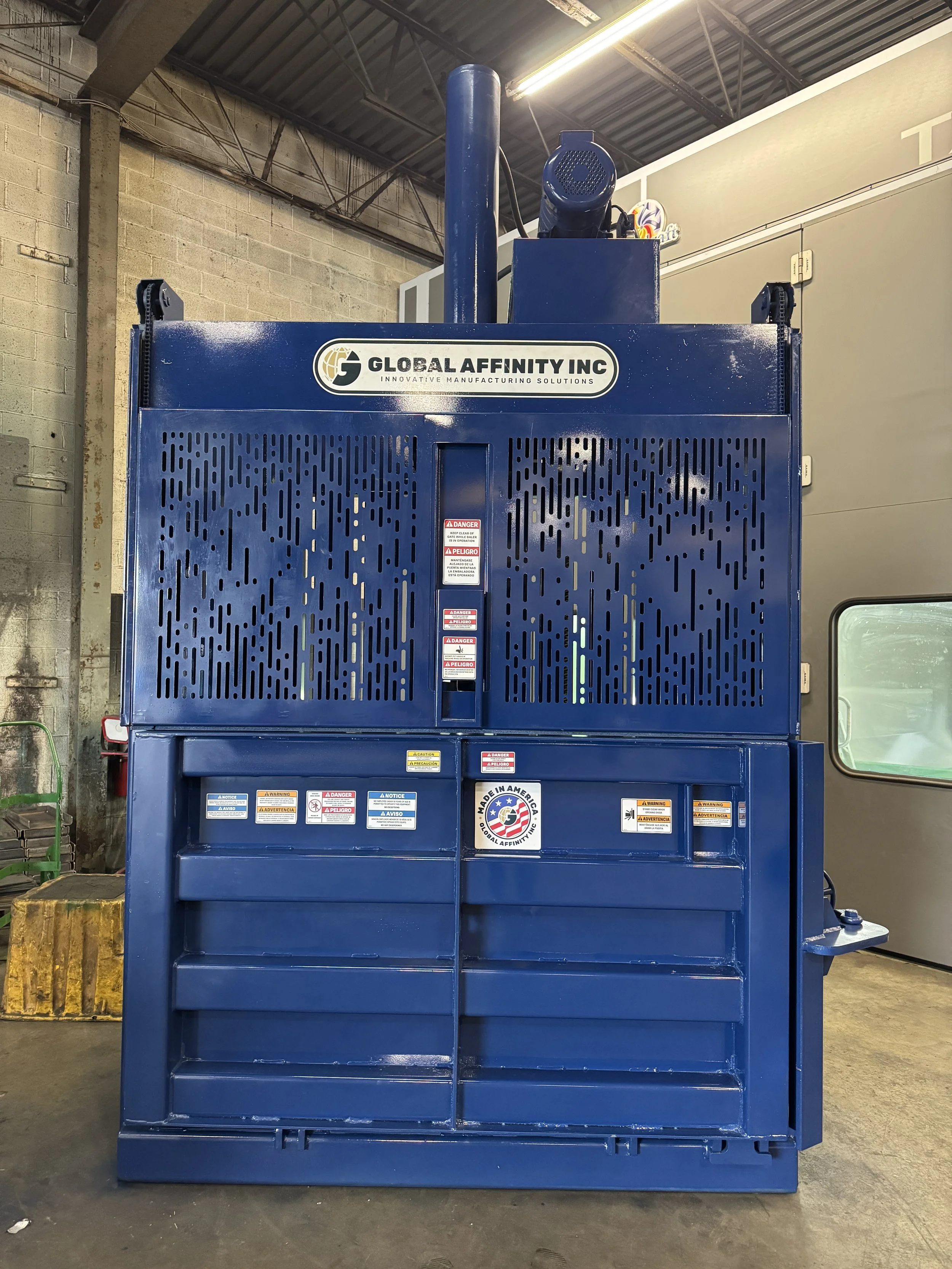

72” Vertical Baler
The G7242-HD Model line is specifically designed as a heavy-duty, multipurpose machine. Ideal for retail, distribution, big box, and manufacturing facilities, the G7242-HD is up to the task.
-
Bale Size (W x D x H): 72” x 30” x 48” [183 cm x 107 cm x 122 cm]
Bale Weight: 1,200-1,600 lb [544-725 kg]
Feed Opening: 27” x 72” [102 cm x 182 cm]
Feed Height: 54.5” [139 cm]
Machine Weight: 9,855 lb [4,469 kg]
Overall Dimensions (W x D x H): 78” x 41” x 149.5” [198 cm x 104 cm x 380 cm]
Capacity per Hour: 116 cu yd / h
-
Average Cycle Time: 49 sec
Operating Force: 100,041 lb [445 kN]
Maximum Force: 111,584 lb [496 kN]
Operating Ram Pressure: 33.5 psi [231 kPa]
Maximum Ram Pressure: 37.4 psi [258 kPa]
-
Electric: 208/230/480 3-Phase
Control Voltage: 110V
Motor: 20hp [14.9 kw]
Full Load Amperage: 60/54/27A
-
Pump: 15 gpm [56.78 l/m]
Operating Pressure: 2,600 psi [17,926 kPa]
Maximum Pressure: 2,900 psi [19,994 kPa]
Hydraulic Cylinder: 7” Bore x 4.5” Rod x 48” Stroke [18 cm x 11.5 cm x 12 cm]
60” Vertical Baler
The G60 model line is specifically designed for most standard baling applications. A quiet power unit is standard on all models.
Ideal for retail, distribution, big box, medical, and manufacturing facilities, the Global vertical baler line is up to the task.
Popular in most recycling applications, the frames are designed to bale cardboard, plastic, clothing, & light nonferrous metals such as aluminum siding and copper wire.
The structures are welded by AWS certified technicians.
The standard unit is UL 508A approved and is equipped with a quiet power unit & PLC controls.
All Global products meet and exceed OSHA & ANSI requirements.
-
Bale Size (W x D x H): 60” x 30” x 48” [152 cm x 76 cm x 122 cm]
Bale Weight: 1,000-1,300 lb [454-589 kg]
Feed Opening: 27” x 60” [102 cm x 152 cm]
Feed Height: 54.5” [139 cm]
Machine Weight: 4,975 lb [2,211 kg]
Overall Dimensions (W x D x H): 78” x 41” x 149.5” [198 cm x 104 cm x 380 cm]
Capacity per Hour: 116 cu yd / h
-
Average Cycle Time: 56 sec
Operating Force: 67,858 lb [302 kN]
Maximum Force: 76,340 lb [340 kN]
Operating Ram Pressure: 30.9 psi [213 kPa]
Maximum Ram Pressure: 35.5 psi [245 kPa]
-
Electric: 208/230/480 3-Phase
Control Voltage: 110V
Motor: 10hp [7.45 kw]
Full Load Amperage: 14/28/31A
-
Pump: 10.5 gpm [39.75 l/m]
Operating Pressure: 2,400 psi [16,548 kPa]
Maximum Pressure: 2,700 psi [18,616 kPa]
Hydraulic Cylinder: 6” Bore x 3.5” Rod x 48” Stroke [15 cm x 9 cm x 12 cm]
